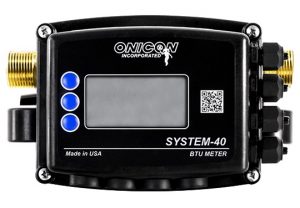

美国Onicon公司System-40 BTU热量表

The System-40 provides highly accurate thermal energy measurement in chilled water, hot water or condenser water systems. It is provided as a complete meter and includes a matched pair of platinum RTD temperature sensors and an integral inline ultrasonic flow sensor. It is available for use in ½” through 2½” piping systems with flow rates ranging from 0.03 to 250 GPM.

The native BACnet® MS/TP and MODBUS RTU versions of the meter communicates energy, flow and temperature data directly to the network. Three auxiliary terminals can be configured at the factory to provide pulse outputs, inputs, a combination of the two, or even a single analog output.

Pulse outputs provide volume or energy totalization to the BMS.

Pulse inputs can bring in totalization pulses from a local meters such as water, natural gas, or electric meters. Pulse input totals are accumulated in the internal registers and then transmitted to the RS-485 network. These totals are also available on the built-in display.

Analog output can be programmed to provide energy rate, volume rate, or temperature data to the BMS via a 4-20 mA / 0-10V / 0-5V signal.

Standard Features: Reliable No-Moving-Parts Design
The System-40 utilizes direct path wetted ultrasonic transducers to measure flow. This no-moving-parts design optimizes signal strength and ensures long-term reliability.

Operates Over a Very Wide Flow Range
The built-in ultrasonic flow meter has a 500:1 turndown

Precision Matched Platinum RTD Temperature Sensors
1000 ohm sensors are matched to a differential uncertainty of better than ±0.18° F.

Auxiliary Pulse Inputs
The System-40 with BACnet MS/TP or MODBUS RTU can be ordered with 3 auxiliary pulse inputs for totalizing pulses from water, gas or electric meters. This simplifies network connectivity in the tenant space.

Simple Installation and Commissioning
Each meter is delivered fully programmed and ready for use upon delivery. Commissioning is done through the user interface/display without the need for special tools.

Detachable Calculator
The System-40 electronics enclosure is easily detached from the flow body to allow for remote wall mount installations using the 5’ cable provided with the meter.

C900.1 / EN1434
The System-40 is designed to meet the requirements of C900.1 and EN1434
