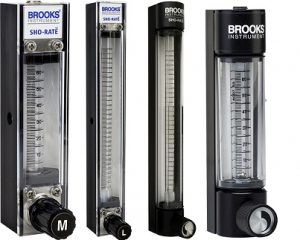

型号 1250A / 1255A / 1350G / 1355G / 1358，Sho-Rate™ 1350/1355 流量计按型号可提供达 3％的精度和 0.25％ 的可重复性。Sho-Rate™ 1250/1255 流量计采用经久耐用的经济型设计，旨在满足系统（需要计量功能）和分析积分器的 OEM 要求。
技术参数
| 型号 | 1250A | 1255A | 1350G | 1355G | 1358 |
| 区别 | Rotating lens allows 180°view with magnification | Rotating lens allows 180°view with magnification | Clear Polycarbonate front shield with built-in magnifier for easy float and scale reading. Interchangeable tubes and floats with direct reading (DR) scales on tube | Clear Polycarbonate front shield with built-in magnifier for easy float and scale reading. Interchangeable tubes and floats with direct reading (DR) scales on tube | Heavy-wall, precision bore borosilicate glass metering tube. Tube removable without disconnecting the instrument. |
| 流量范围-满量程容量-液体 | Millimeter Scale
Air (ccm) 50 – 65850 ccm* Water (ccm) 21.4 – 2055 ccm* *QuickShip |
Millimeter Scale
Air (ccm) 50 – 66370 ccm* Water (ccm) 22.2 – 2080 ccm* *QuickShip |
Millimeter Scale
See data sheet for ranges including QuickShip. |
Millimeter Scale
See data sheet for ranges including QuickShip. |
Millimeter Scale
See data sheet for ranges. |
| 流量范围-满量程容量 | Direct Read Scale
Water .1 -10 lpm .1 – 130 scfh Air .1 – 60 lpm 2 -550 ccm .1 -25 scfh Nitrogen 4-400 ml/min 0.1-1.2 scfh |
Direct Read Scale
Water .1 – 1.3 lpm 2 -130 ccm Air .05 – 50 lpm 4 – 850 ccm .06 – 6 scfh Nitrogen 2 – 100 ccm 0.1 – 9 lpm .5 – 50 scfh |
Direct Read Scale
Water .010 – 34 gph .041 – 130 lph Air .12 -140 scfh 3.2 – 3700 nlph |
Direct Read Scale
Water .59 – 2000 cc/min Air 50 – 1300 scc/m .82 – 63 slpm |
Direct Read Scale
Water .8 – 5 gpm Air 3.4 – 15 scfm |
| 精度 | ± 5% | ± 3% | ± 5% | ± 3% | ± 10% FS |
| 构造材料 | Borosilicate Glass
Aluminum 316 Stainless Steel Clear Polycarbonate Teflon |
Borosilicate Glass
Aluminum 316 Stainless Steel Clear Polycarbonate Teflon |
Borosilicate Glass
Brass Aluminum 316 Stainless Steel Clear Polycarbonate Milk White Polycarbonate Teflon |
Borosilicate Glass
Brass Aluminum 316 Stainless Steel Clear Polycarbonate Milk White Polycarbonate Teflon |
Borosilicate Glass |
